Longwall Substations

View our high performing longwall substations designed to support reliable power distribution at the coal face.

Custom and compliant

Developed as part of a complete electrical package for longwall systems, our longwall substations are available in either flameproof or ingress protected (IP66) variations and can facilitate 11kV/3.3kV up to 7.5MVA.

Each longwall substation is manufactured with a High Tension (HT) enclosure for necessary electrical protection equipment, a nitrogen-filled dry type transformer, and a Low Tension (LT) enclosure for communication and control devices.

The complete substation is typically supplied on a powered track mounted skid with rated lifting facilities to allow for easy relocations around a site.

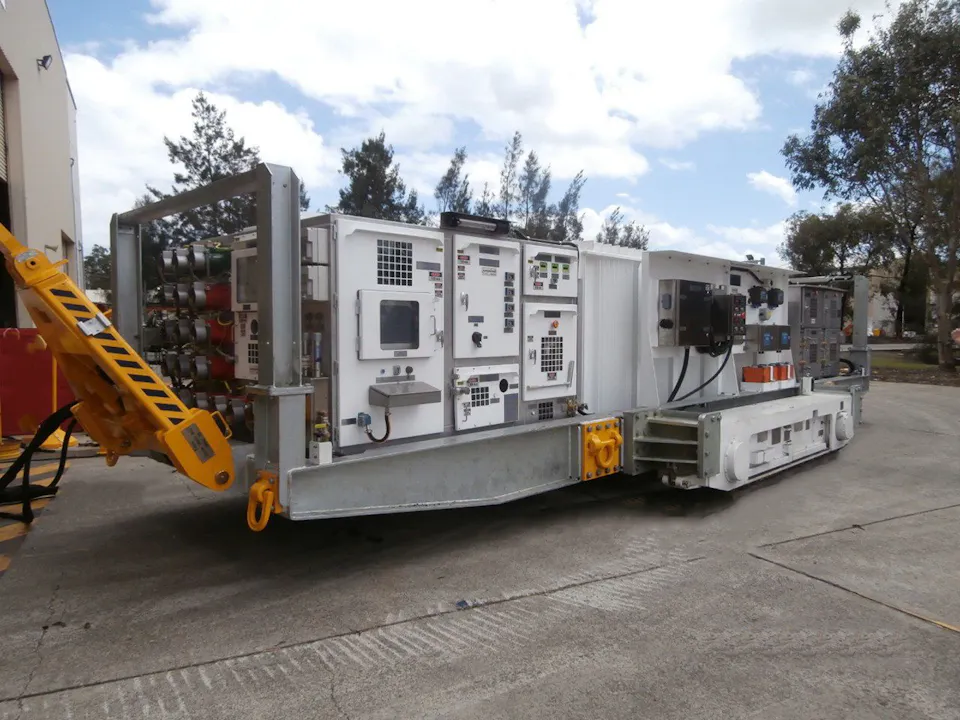

C-Level Page-Images Longwall mining

Product features

  • Supply power - 11kV (options for 6.6kV available) ­
  • Output power - 3.3kV
  • Typical power ratings – 4.5MVA to 7.5MVA
  • Explosion proof or IP66
  • Compliant to all Australian and state legislative requirements
  • Up to 10 outlets
  • Standard mounting – hydraulic powered track system
  • Additional mechanical protection available
  • All outlets can be the same configuration, making all outlets universal
  • Ampcontrol outlets provided with machine recognition
  • Communication options including fibre optic/ethernet connectivity.
