Electrical Protection Relays

Electrical protection is the coordinated set of protective devices - circuit breakers, fuses, residual current devices and protection relays - that monitor a circuit, detect faults such as overcurrent, short circuits, earth leakage and overvoltage, and trip the supply to isolate the faulty circuit before equipment damage, electric shock or fire can occur.

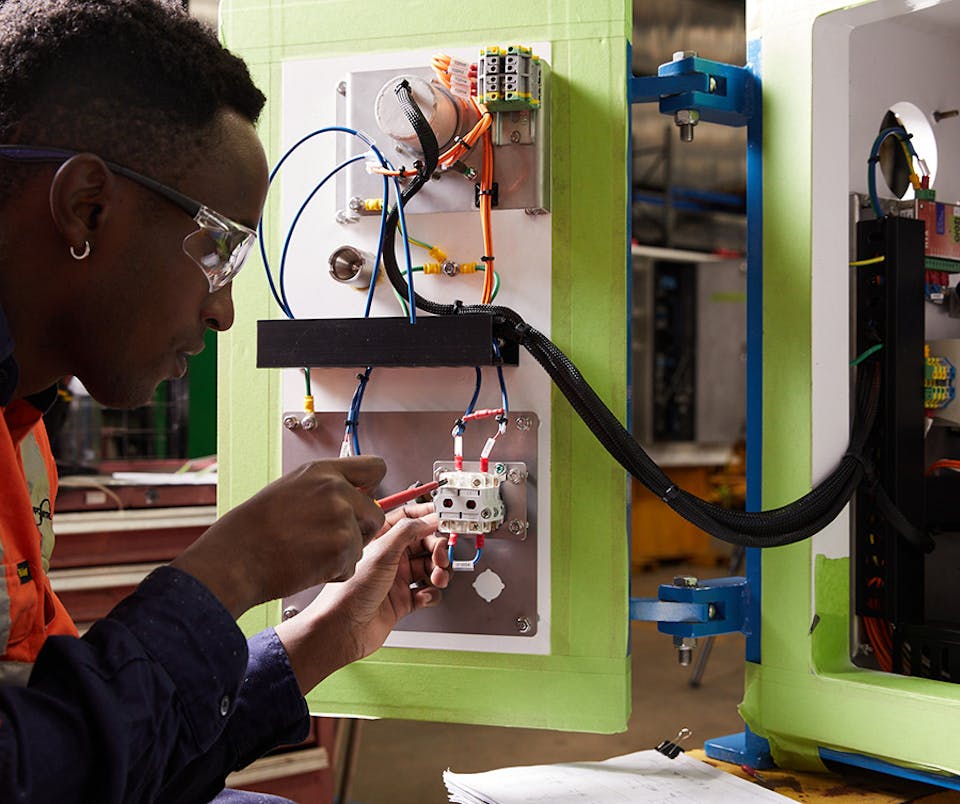

Every protection scheme is built from two essential elements. Sensing devices (current transformers and voltage transformers) measure what is happening on the network. Operating devices, protection relays paired with circuit breakers or contactors, make the decision and physically break the connection when a fault occurs. In industrial and mining installations, electrical protection is not a single product. It is a coordinated system with circuit protection products that delivers safety, equipment protection, selectivity, and speed in a single engineered solution.

ANSI device numbers 50 and 51 refer to overcurrent protection functions. Device 50 is an instantaneous overcurrent - it trips immediately when the current exceeds a set threshold, used to detect short circuits. Device 51 is time-delayed (inverse-time) overcurrent - it trips after a delay that decreases as fault current rises, used to detect overloads. Modern multifunction protection relays combine 50, 51, and many other ANSI functions into a single integrated unit.

An unprotected electrical network is one fault away from a catastrophic event. When a faulty circuit goes undetected, current ratings are exceeded in milliseconds, motors and transformers are destroyed, cables ignite, and people working near the equipment face electrocution and arc-flash injury.

For Australian mining and heavy industrial sites, the stakes are higher. AS/NZS 2081:2011 sets the protective measures that every electrical outlet and all electrical devices supplying mining equipment must meet. Electrical protection is therefore both a safety reasons compliance obligation and an operational risk-management tool.
